RE-909 / TR-909 Rare Parts Kit

Rare Parts Kit for RE-909 / RE909

This rare parts kit is designed for the RE-909 drum machine (and TR-909 clones) and includes a wide selection of vintage New Old Stock (NOS) components – perfect for restorations or DIY builds.

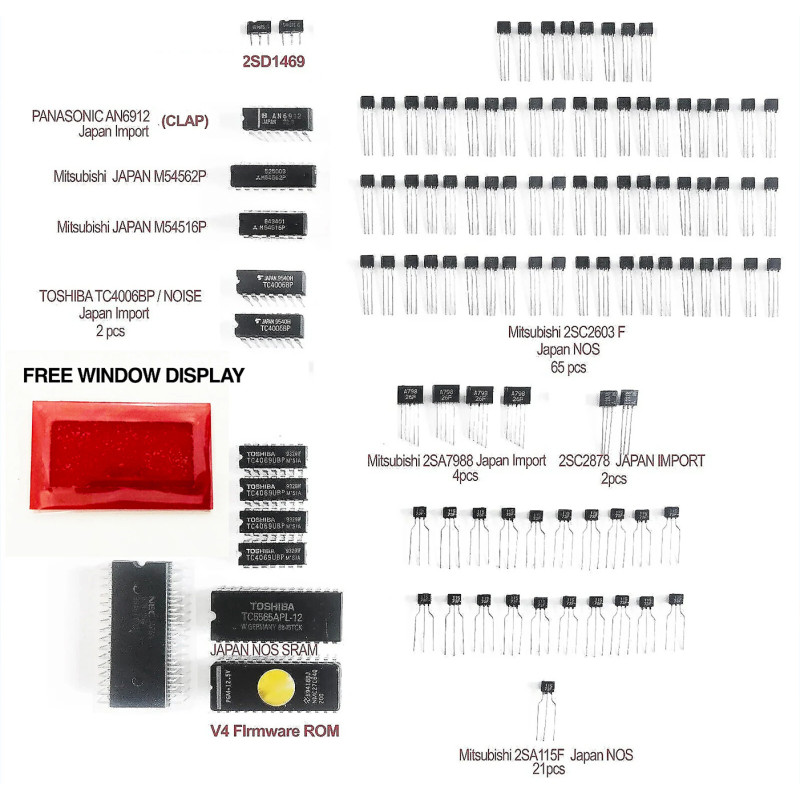

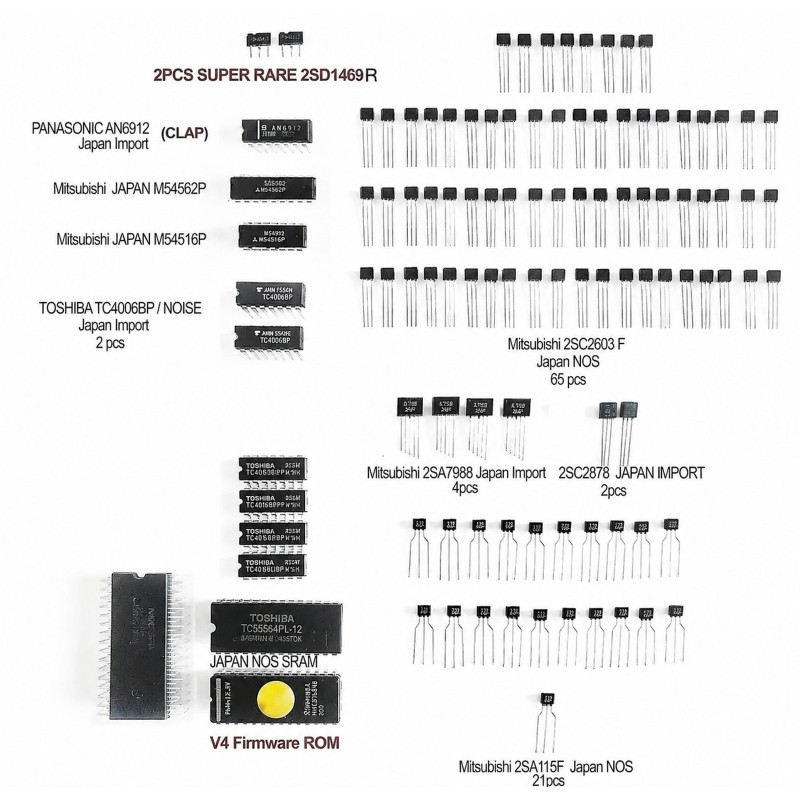

Included Rare Parts

4x Toshiba TC4069UBP – NOS ICs for proper SNARE & TOMS tone shaping
1x V4 firmware EPROM – tested on RE-909
2x SD1469/20 – NOS
4x 2SA798 (G or F version, Mitsubishi)
1x NEC 7811G/10
1x Toshiba 5565PL – SRAM or other Japan NOS SRAM
2x 2SC2878 – NOS
1x AN6912 – NOS
1x M54516P or BA612 – NOS
2x TC4006B – NOS
65x 2SC2603 or NEC 945P – NOS transistors
21x 2SA1115 Mitsubishi or NEC 733P – NOS
1x M54562P – NOS

Bonus item (while stock lasts)
Free display window included – from a visually acceptable but imperfect batch (doesn’t sit perfectly flush with the case)
A perfect-fit version is available separately
https://raresynthparts.com/en/rare-parts-re-909/129-tr909_cartrigde.html

Recommended Add-ons (sold separately)
38x NJM/JRC 4558L op-amps
https://raresynthparts.com/en/home/155-37-pcs-njm-4558l-for-tr-909-re-909-sr-909.html
Greenies Film + Styrene Capacitor Kit (116 pcs)
https://raresynthparts.com/en/home/138-tr909-film-capacitors.html
Vintage Japan NOS Film + Styrene Capacitor Kit (116 pcs)
https://raresynthparts.com/en/home/132-tr909-film-capacitors.html

All components are genuine vintage NOS, sourced from trusted suppliers. Ideal for full restorations or building your own RE-909 from scratch.
